How many display frames fit in a container? The tempting answer is to divide container volume by carton volume. That number is only a theoretical starting point. Real loading depends on the approved carton, orientation, pallet or floor-load method, weight distribution, securing, door clearance, mixed-SKU sequence, moisture plan, container condition and the ability to unload safely.
This guide is for importers, private-label brands, distributors, event teams and procurement managers moving bulky, fragile display frames by container. It applies the official IMO/ILO/UNECE CTU Code and IMO verified-gross-mass guidance to a buyer handover. It is not a freight quotation, engineering calculation, lashing design, container-capacity promise or carrier instruction.
Freeze the packed product before promising container quantity
Use final approved master-carton dimensions, gross mass, units per carton, product orientation, protective materials and pallet configuration. Product outside dimensions are not freight data. Corner blocks, glazing separation, sleeves, accessories, inner boxes and carton board all change the shipping cube and weight.
Name the packaging revision on the load plan. If a damage test or sample review adds protection, recalculate before booking. Do not let sales literature continue to show an old container quantity after the pack changes. A provisional estimate should be labelled as provisional, with the assumptions and owner visible.
Create a packed-data sheet for every SKU
For each sellable configuration, record SKU, carton orientation, outside length, width and height, gross and net mass, units per carton, stacking restriction, centre-of-gravity concern, fragile faces, moisture sensitivity and pallet requirements. Photograph the closed carton and the internal protective system.
For mixed programmes, identify what is shared and what differs. Two frames with the same outside product size may use different depth, glazing, plaque or protective pack. A load calculation based on a family average can hide the SKU that controls stack height or mass. Keep data attributable to a physical packed sample or production-equivalent trial.
Separate theoretical cube from a loadable plan
Theoretical cube divides nominal container volume by carton volume and ignores geometry, access, tolerances and safety. A loadable plan places actual carton dimensions into the usable space while respecting door opening, internal protrusions, floor limits, stack strength, pallets, restraint and the unpacking method.
Report both when useful, but never present theoretical cube as a shipment commitment. Include a layout view, carton count by SKU, unused spaces, pallet count, gross cargo mass and assumptions about load method. Ask the forwarder or competent packer to confirm the actual CTU type and limits supplied for the booking.
Choose floor loading or pallets by the whole handling chain
Floor loading can reduce pallet volume but increases manual handling, loading time and destination labour. Pallets can improve mechanical handling and segregation but add height, mass, footprint and wood-packaging questions. The decision should consider factory equipment, container loading, transhipment, destination warehouse, retailer requirements and damage exposure.
Do not choose floor loading only to maximise a spreadsheet quantity if the receiving site cannot unload cartons safely. Do not choose a pallet pattern from another product without checking display-frame carton strength and centre of gravity. Where solid-wood pallets are used internationally, include the separate ISPM 15 verification.
Check the cargo transport unit before packing
The CTU Code addresses suitability and the condition of cargo transport units. The responsible packer should inspect the container or other CTU for structural condition, cleanliness, dryness, odour, residues, holes, door operation, floor condition and suitability for the cargo. Record defects and reject or escalate an unsuitable unit before loading begins.
A clean exterior does not prove a dry, sound interior. Photograph walls, roof, floor, doors and identification as permitted by the logistics process. Confirm that the CTU matches the booking and load plan. Do not repair a container or cover defects without the owner’s authorised procedure.
Respect carton orientation and frame geometry
Some display frames may be designed to travel upright; others may use a validated flat or nested pack. The correct orientation depends on glazing, joints, backing, mounting, product weight and protective design. Use the approved pack instruction and visible handling marks supplied by the responsible project owner.
Map the orientation through palletising, container loading, transhipment and unloading. A carton loaded correctly at the factory can be turned at a consolidation warehouse. For mixed SKUs, ensure staff can identify orientation without opening cartons or relying on a language-specific verbal instruction.
Verify stacking from the actual package system
Container height does not define safe stack height. Carton compression, duration, humidity, pallet deck support, corner alignment, product load path and dynamic transport forces influence the stack. Obtain evidence from a competent packaging designer or validated shipment plan for the actual carton and route.
Avoid placing a heavy small carton on the weak centre of a larger frame carton. Keep vertical load paths aligned where the pack is designed for stacking. Use interlayers, caps or other elements only when specified and validated. Record maximum layers or mass in the packing instruction rather than asking loaders to judge by appearance.

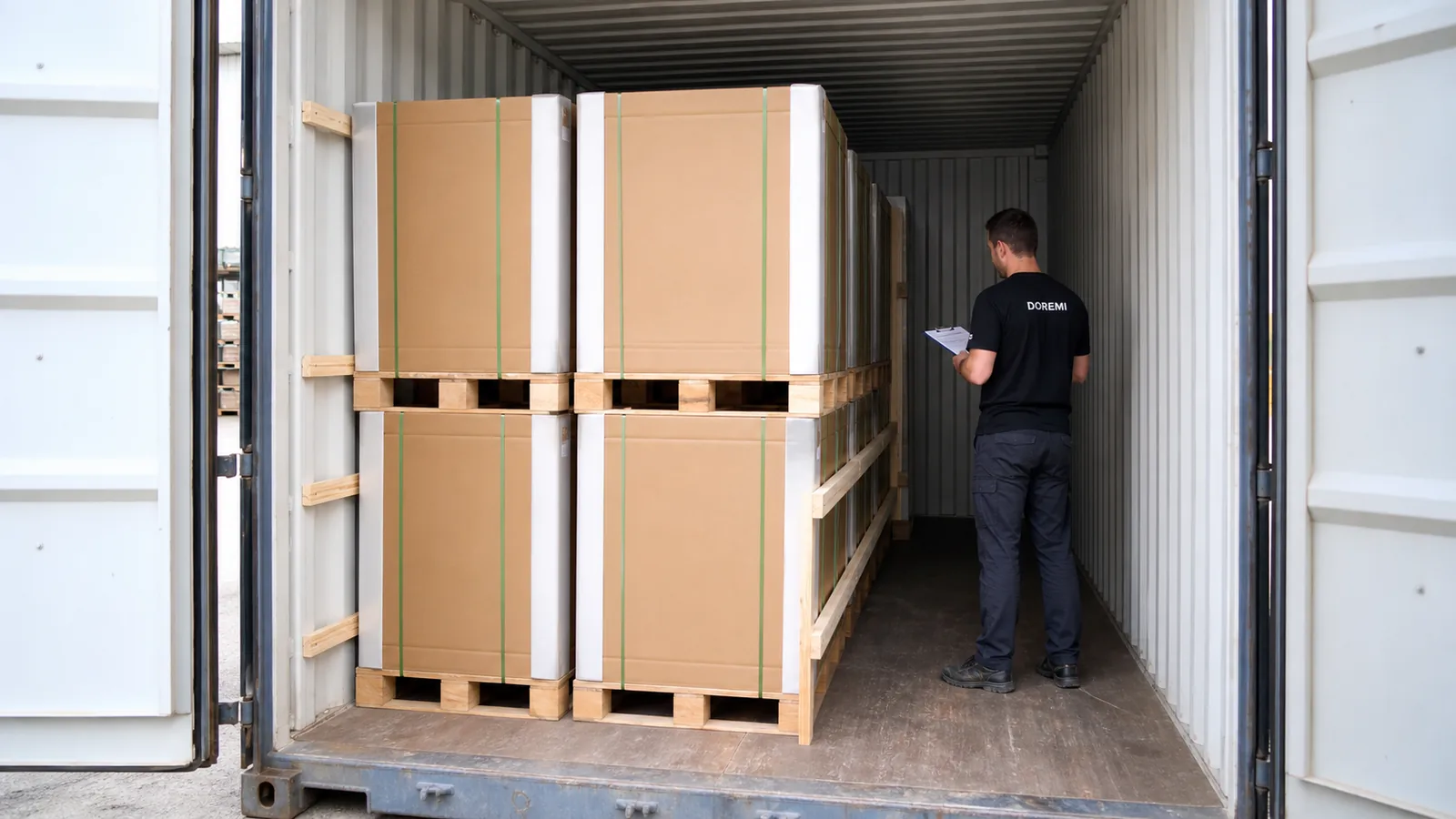

Distribute mass and protect the CTU
The CTU Code provides guidance on load distribution and securing. Cargo should not create an unsafe concentration on the floor or an unstable end-to-end balance. The competent packer must consider the CTU’s limits, axle and road requirements, handling and transport modes for the route.
Display frames can be bulky relative to mass, but mixed pallets, glazing or plaques can still create significant local loads. Calculate mass by row, pallet or zone from verified packed data. Do not add a dense accessory or spare-parts pallet at the door as a late afterthought without reviewing distribution and restraint.
Prevent movement in every direction
Close packing can reduce movement, but a small gap can become meaningful during braking, rail impacts, vessel motion or repeated vibration. The load plan should address longitudinal, transverse and vertical movement using methods suitable for the cargo and CTU. Blocking, bracing, lashings, dunnage bags or friction materials require competent selection and installation.
Do not ask a frame supplier to invent lashing capacity or fill voids with scrap. Identify approved materials, contact surfaces, anchor points, protection against abrasion and the person who verifies the final arrangement. Restraint must not crush cartons or transfer damaging point loads to glazing and frame corners.
Plan mixed SKUs for identification and unloading
Create a loading sequence that supports the destination receiving plan. Group or zone SKUs where practical, identify partial pallets, and provide a count by position. If one SKU is needed first at an event or distribution centre, its position may matter more than maximising the last small void.
Use controlled carton marks and a packing list rather than colour or memory alone. Keep personalisation or recipient information to the minimum needed and follow the buyer’s data policy. Photograph each completed zone before it is hidden by the next row, then reconcile the final count with the shipment documents.
Control wood packaging and dunnage together
Solid-wood pallets, crates, blocks or bracing may fall under ISPM 15 for international routes. A compliant pallet does not cover unapproved timber added later as dunnage. List the exact securing materials in the load plan and source regulated WPM through authorised channels.
Inspect marks and construction before cartons or stretch wrap make them difficult to see. Keep phytosanitary evidence with the shipment file. The loading supervisor should stop if unapproved scrap timber appears, even when the sailing cut-off is close. Replace it with an approved material or obtain a qualified decision.
Build a route-specific moisture plan
The CTU Code notes that moisture in cargo, porous packaging, timber bracing or loading conditions can contribute to condensation damage. Display frames can combine hygroscopic backing, wood or MDF, paper inserts, metal hardware and corrugated cartons. Temperature changes during a long route can expose different materials to container or cargo sweat.
Load dry goods and dry packaging into a suitable dry CTU under controlled conditions. Keep products out of rain and away from wet floors. Barriers, liners, ventilation or desiccants should be specified by a competent provider for the route and moisture load; this guide does not prescribe a universal quantity. Avoid wrapping that traps existing moisture.
Protect cartons from walls, roof and door zones
Review contact with corrugated steel, door hardware, floor irregularities and potential condensation paths. Use approved protection so vibration does not abrade cartons and water droplets are not directed into the load. Maintain the required door clearance and ensure nothing can fall outward when the doors are opened.
The final row often receives hurried filler or extra cartons. Treat it as a designed zone with defined restraint and safe access. The person closing the doors should be able to verify that cargo is secure and that no packaging, lashing or frame carton interferes with locking gear.
Calculate and communicate verified gross mass
IMO states that the shipper named on the bill of lading or equivalent transport document is responsible for obtaining and communicating the verified gross mass of the packed container, and that VGM is a condition for loading onto the ship. Clarify who the named shipper is and which approved method and competent authority rules apply.
IMO describes two routes: weighing the packed container, or weighing all cargo items, pallets, dunnage and securing materials and adding the container tare using an approved certified method. The loading plan’s estimated mass is not automatically VGM. Record the verified result and transmit it to the carrier and terminal within the required process and cut-off.
Reconcile count, mass and documents before sealing
After loading, compare carton count by SKU, pallet count, cargo mass, packaging materials and load-plan position with the packing list and VGM process. Resolve differences before sealing. Do not change a document to match an unexplained variance; find the physical or data cause.
Capture photographs from the empty CTU through loading stages to the final restrained row where permitted. Record seal number through the authorised logistics process, door closure, time, location and responsible parties. Avoid exposing commercial or personal data in widely shared photo folders.
Design the destination receiving handover
Tell the receiving site how the container was loaded, which SKU is at the door, whether pallets or floor-loaded cartons are expected, the unloading equipment and labour needed, and how to open doors safely. Share any sequence, fragile orientation, moisture-acclimation or quarantine instruction approved by the responsible advisers.

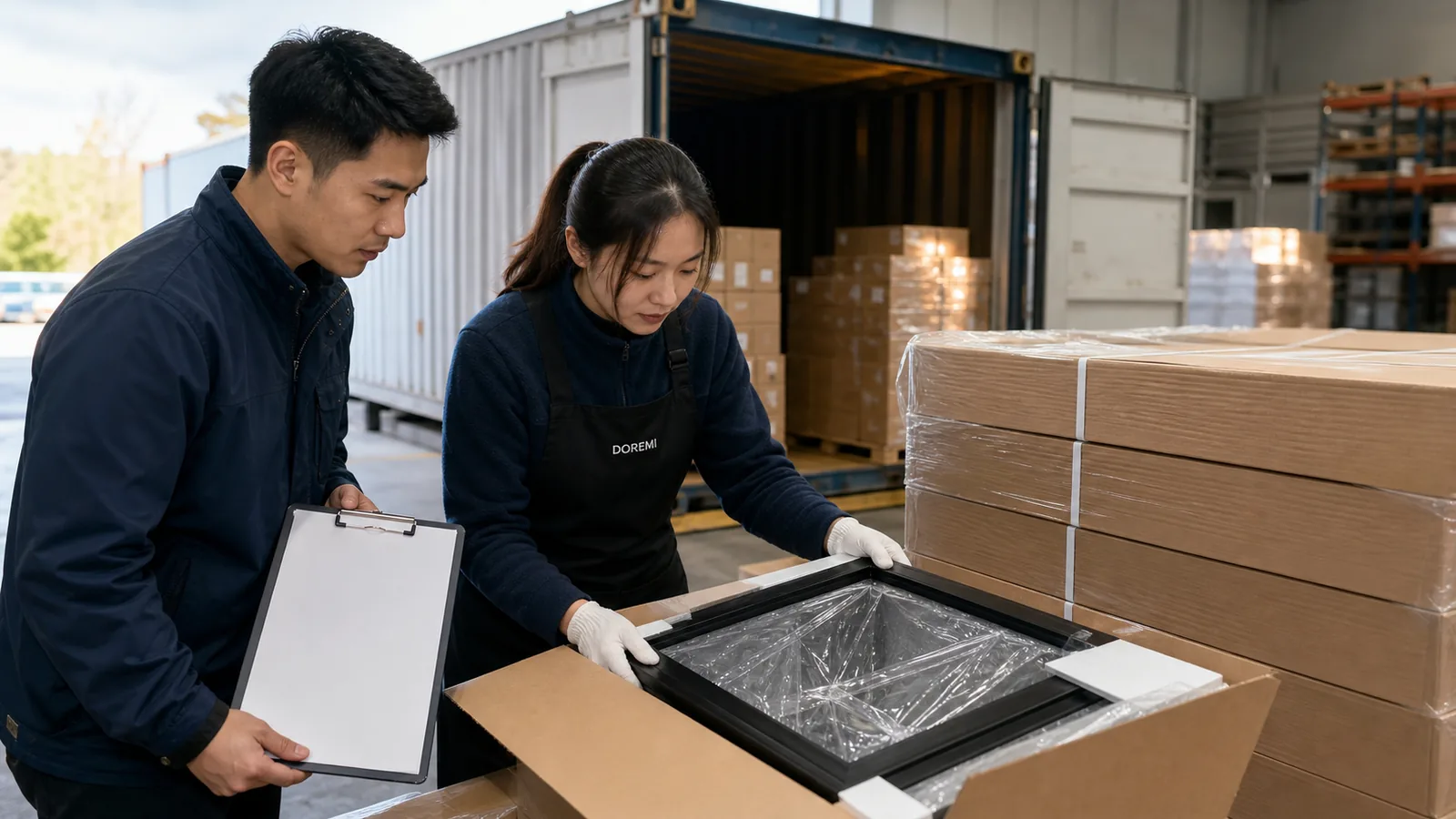

At arrival, record seal and exterior condition, open under the site’s safety procedure, photograph the door-end load before movement, count visible units and note water, movement, crushed cartons or other exceptions. Follow carrier, insurer and buyer notice procedures. Do not discard damaged packaging before evidence owners decide what to retain.
Run a pilot load for a new programme
A software layout can show geometry but not every real-world variation in carton dimensions, pallet squareness, loading equipment, labour access or restraint installation. For a new high-volume programme, consider a controlled pilot load or partial physical trial with the competent logistics and packaging teams.
Record actual loading time, count, unused space, tight points, carton condition, restraint, photographs and unloading feedback. Update the plan and cost model from that evidence. Do not extrapolate one smooth demonstration to every shipment without controlling packaging, CTU type and process changes.
Compare cost per delivered good unit
Higher container utilisation can reduce freight allocation per unit, but only if the packing and loading system protects the goods and can be handled. Include carton and pallet cost, loading labour, securing, VGM, destination labour, storage, damage, rework and delayed-event exposure when comparing options.
Keep estimated and confirmed amounts separate. A few more cartons may create overtime, unsafe manual work or a weak final row. The best commercial plan is repeatable and produces usable goods at the destination, not merely the highest quantity in a cube calculation.
Use change control after approval
Trigger review when carton dimensions, units per carton, glazing, frame size, protective material, pallet, CTU type, SKU mix, route, destination equipment or securing method changes. Update the drawing, calculation, packed-data sheet, loading instruction and commercial estimate together.
Archive actual shipment evidence and receiving feedback against the revision. Over time, the buyer can distinguish systematic unused space from necessary access and identify which damage or delay relates to product pack, load method or handling. Reorders improve when the history is controlled rather than remembered.
Buyer container-loading checklist
- Every SKU has production-equivalent packed dimensions, mass and orientation
- The load plan names the approved packaging revision and CTU type
- Theoretical cube is separated from safe loadable quantity
- Floor-load or pallet choice matches factory and destination handling
- The empty CTU is checked for condition, cleanliness and dryness
- Stack height and load paths are based on packaging evidence
- Cargo mass is distributed within competent route and CTU limits
- Movement is restrained in every relevant direction with approved materials
- Mixed SKUs are zoned, counted and sequenced for unloading
- Solid-wood pallets, crates and dunnage follow the ISPM 15 handover
- Moisture controls match the route and actual packaging condition
- The named shipper obtains and communicates VGM through an approved method
- Count, mass, photographs, documents, doors and seal are reconciled
- Receiving equipment, sequence, inspection and exception process are defined
Experience scope and project limits
Editorial review: Jessica, Founder & Project Advisor at DOREMI Display. Updated 25 August 2026. Jessica’s practical scope covers display-frame specifications, packed-data coordination, supplier communication, packaging review and buyer handover. She is not presented as a freight forwarder, marine surveyor, container packer, lashing engineer, carrier, customs broker or insurer.
This guide provides planning questions only. A competent packer, packaging engineer, forwarder, carrier and route-specific adviser must confirm the actual CTU, load distribution, securing, moisture controls, VGM procedure, documentation and safe loading or unloading method. Container dimensions, limits and rules must be verified for the specific booking.
