A barcode that scans in the sample room can still fail the commercial programme. It may carry the wrong GTIN, identify the wrong packaging level, sit on artwork from an obsolete SKU or become unreadable after printing, lamination and carton handling. For private-label display frames, product data and packaging must be approved as one controlled system.
This guide is for brands, importers, distributors, retailers and fulfilment teams launching certificate, jersey, medal, vinyl-record and memorabilia frames. It translates GS1 principles into a supplier-handover workflow. It does not assign a GTIN, guarantee retailer acceptance, replace a licensed GS1 organisation or certify barcode print quality.
Begin with the trade item, not the barcode artwork
GS1 defines a trade item as a product or service that may be priced, ordered or invoiced in the supply chain. Before requesting any symbol, decide what each business partner must distinguish. A retail frame, inner pack, case and pallet can be different trade-item levels even when they contain the same design.

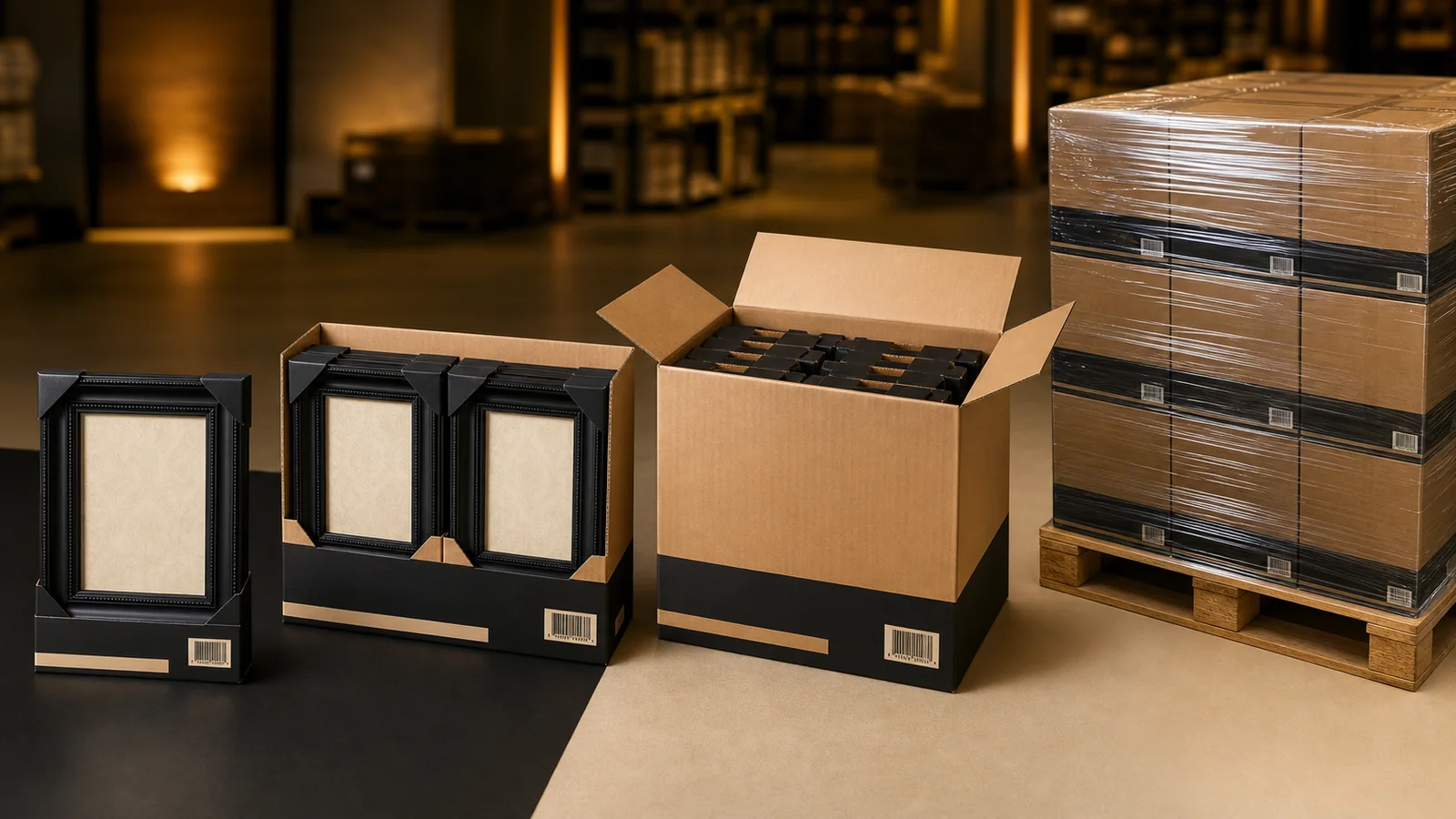

Build the hierarchy on paper first. Show the consumer unit, pack, case and logistic unit, the quantity contained and whether each level is ordered, invoiced, shipped or scanned. Do not ask a factory graphic designer to invent this structure while placing labels. Identification is a business-data decision owned by the brand and its supply-chain partners.
Confirm who owns the GS1 company prefix and GTIN
The brand owner normally determines product identification under its licensed GS1 capacity, subject to current local and partner requirements. An OEM factory should not reuse another customer's number, create unofficial digits or place its internal SKU inside a retail barcode because artwork is due.
Record the legal organisation assigning each GTIN, its responsible data owner and approval evidence. If a retailer or marketplace supplies identifiers, document the agreement and scope. If the manufacturer owns the consumer brand, clarify that explicitly. Contract manufacturing does not make GTIN ownership self-evident.
Create one product master before creating variants
Use a controlled record for brand, product type, frame size, visible opening, orientation, profile material, finish, glazing, backing, included accessories, pack quantity, language or market version, dimensions and gross weight. Link the source drawings and approved sample.
A title such as black wooden photo frame is not unique enough. A 5×7 tabletop frame, A4 certificate frame and deep jersey shadow box have different physical and commercial identities. Separate marketing language from structured attributes so a copy update does not accidentally create a new item or hide a real product change.
Decide which differences need distinct GTINs
Apply the current GS1 GTIN Management Standard and destination requirements. Ask whether consumers or trading partners must distinguish the item, whether a regulated declaration changes and whether the supply chain is materially affected. Primary brand, declared content, dimensions, functionality, pack quantity and predefined assortments can trigger rules.
Do not use intuition alone. A gold finish and black finish may need separate identifiers because they are ordered and sold separately. A packaging-art refresh may not. A dimensional or gross-weight change can cross a GS1 threshold. Record the rule and decision for each change rather than rely on an email saying same product.
Assign unique identifiers to packaging levels
GS1 guidance states that existing packaging hierarchy levels above the retail consumer item receive unique GTINs where required. A case is not identified by printing the retail unit's GTIN on the outside and hoping receiving staff infer the quantity. The hierarchy must declare what the case contains.
Record contained-item GTIN, quantity, packaging-level code, orderable and shipping status for each pack. A change from six frames per case to eight affects the higher-level identification under the GTIN Management rules. Protect the old and new configuration from mixing during transition.
Separate GTIN from internal SKU and supplier code
Your brand SKU may express frame family, size and finish. The supplier may use a material or work-order code. The retailer may have an item number. The GTIN is another identifier with its own governance. Keep a cross-reference rather than forcing one code to serve every system.
The cross-reference should support a user who receives a damaged carton, checks an e-commerce listing or places a reorder. Include status and effective dates. Never recycle a discontinued supplier code into a different product merely because the number is available; the data master should preserve history and prevent ambiguous scans.
Choose the carrier for the scan environment
A GTIN can be encoded in different GS1 barcode carriers depending on retail point-of-sale, general distribution, partner capability and current programme requirements. The choice is not a visual preference. Confirm whether the unit must cross a retail checkout, the case must scan in distribution or a partner is transitioning to two-dimensional symbols.
Ask the retailer, marketplace, warehouse and GS1 member organisation for current requirements. Record symbol type, data, target surface, scanning environment and responsible verifier. A QR-like graphic created by a packaging agency is not automatically a GS1-compliant carrier, and a phone-camera test is not a retail-system qualification.
Protect quiet zones and print contrast
Barcode symbols need clear surrounding space and suitable contrast. Gold foil, textured black board, kraft fibres, glossy lamination, seams, folds and curved protective wraps can interfere with scanning. Design the label area as a functional surface before decorative artwork consumes it.
Use a light, consistent background and keep borders, text and graphics outside the required quiet zones. Avoid placing the symbol across a carton flap, edge, tape path or abrasion point. Confirm sizing and magnification from the current GS1 specifications and the actual printing method rather than resizing until it looks balanced.
Measure the packed trade item consistently
GS1's Package and Product Measurement Standard provides rules for dimensions and gross weight. A display frame's default front and natural base must be determined consistently. Corner protectors, hanging hardware, stand, retail box and shifting inserts can affect the final measurement.
Measure production-equivalent packed samples, not the naked frame or CAD drawing. Record method, orientation, tool, sample count and result owner. If the declared dimensions change, review whether the GTIN Management rules require action and whether retailer data, freight and shelf planning must be updated.
Build a controlled barcode data table
For every symbol, record GTIN, check digit, packaging level, contained GTIN and count, item description, brand SKU, supplier code, symbol type, target artwork, dimensions, market, status and effective date. Restrict who may edit released records.
Generate barcode artwork from an approved system or provider; do not redraw bars in design software. Give the packaging supplier a locked, versioned asset and a human-readable approval proof. The proof should state the encoded data, while the printed sample confirms physical execution. Both are needed.
Control artwork by SKU and packaging level
A product family can contain dozens of nearly identical files. Use filenames and revision metadata that identify brand, product, size, finish, market, packaging level and date. Link each file to the product master and GTIN table. Mark obsolete art so it cannot be selected from a shared folder.
Do not approve a montage that makes symbols too small to inspect. Review each dieline at final scale, then compare printed packaging with the released PDF. A correct symbol on the wrong size carton is still wrong. Include labels applied by the warehouse, not only factory-printed artwork.
Verify data before verifying print quality
First decode the symbol and compare it with the approved GTIN table. Confirm item, variant and packaging level. Then use an appropriate barcode verifier and test method to evaluate the printed symbol against relevant specifications. These are separate questions: correct data can be badly printed, and a beautiful symbol can encode the wrong item.
A scanner's green light only shows that one device read something under one condition. It does not provide a formal quality grade or prove performance across retail equipment. Engage qualified verification support where the channel requires it and retain the report with sample identity, artwork revision and print batch.
Test final material, finish and application
Barcode performance can change between a white proof sheet and a laminated carton. Test the actual board, ink, varnish, foil, label stock, printer, adhesive and application position. Include the darkest and most reflective variants where artwork differs.
Condition and handle samples in a way representative of the route. Inspect scuffing, wrinkles, lifting, stretch wrap and over-labels. If a shipping label may cover the retail symbol, define placement zones. Do not move the barcode during production without a controlled artwork review.
Run a line-clearance check at changeover
Similar cartons create a high mix-up risk. Before a new SKU or size starts, remove obsolete labels, printed boxes and work-in-progress from the line. Confirm the work order, product sample, artwork and GTIN at the first-piece review. Record remaining old packaging and its disposition.
Use controlled counts where practical: labels issued, used, damaged and returned. During mixed-SKU packing, physical separation and scan checks may help, but the process must suit throughput and risk. A barcode system cannot correct a line that deliberately mixes unlabeled products.
Connect serial shipping containers where needed
GS1 distinguishes trade-item identification from logistic-unit identification such as the Serial Shipping Container Code. A pallet assembled for one shipment may need a unique logistic-unit identity even though its cases already have GTINs. Confirm requirements with the logistics partner.
Do not use a GTIN as though it uniquely identifies one physical pallet. Map advance shipping notice, pallet label, case hierarchy and purchase order. If the warehouse builds mixed pallets, define how contents are captured. Keep shipment-level data out of consumer artwork.
Plan product changes and transition stock
When size, weight, brand, pack quantity or functionality changes, evaluate the current GTIN rules before approving production. Record whether a new GTIN is required, which hierarchy levels change, when listings update and how old inventory remains identifiable.
A dual-running period needs physical and system controls. Do not place new product in old packaging or use a new case label on old quantities. Communicate effective dates to retailers, fulfilment partners and the supplier. Archive retired GTINs; do not reassign them casually to a new frame.
Audit the digital and physical product together
Select a finished unit and trace from scan to product master, listing, artwork, case hierarchy, purchase order and supplier work order. Then select a digital GTIN and locate the correct physical stock. Investigate mismatched images, dimensions, materials, finish names and pack counts.
Repeat after the first production shipment and after material or packaging changes. Data quality is not a one-time setup task. Customer returns, receiving exceptions and marketplace listing errors should feed back into the master-data and artwork process.
Buyer release checklist
- Trade-item and packaging hierarchy approved before artwork
- GTIN owner and licensed organisation confirmed
- Product master distinguishes every sellable variant
- GTIN Management decisions recorded for differences and changes
- Retail unit, pack and case identifiers mapped correctly
- Brand SKU, supplier code and retailer item number cross-referenced
- Barcode carrier matches the real scan environment
- Quiet zones, contrast, size and placement follow current rules
- Final packed dimensions and weight measured consistently
- Barcode data table and generated assets are access controlled
- Artwork is versioned by SKU, market and packaging level
- Encoded data and print quality verified separately
- Production material, line clearance and transition stock checked
- Logistic-unit labels and audit records connect to shipments
Experience scope and project limits
Editorial review: Jessica, Founder & Project Advisor at DOREMI Display. Updated 17 August 2026. Jessica's practical scope covers B2B display-frame briefs, SKU planning, samples, private-label packaging, production coordination and buyer handover. She is not presented as GS1, a barcode-verification laboratory, retailer data authority or legal adviser.
This guide is an educational procurement workflow. Obtain identifiers through the appropriate licensed organisation and validate current GTIN rules, barcode carriers, dimensions, symbol specifications, retailer requirements and verification methods for each target market and channel. Only approved owners should assign or change production data.
